Overview of WSDL



WSDL stands for Web service Description Language.

A WSDL document is a contract between a SOAP–based web service and its consumers.

A WSDL document provides critical information such as service endpoint, service operations, data types required for operations, description of messages exchanged, and underlying service pattern (request/response, solicit/response etc).

The WSDL document is useful for both creating and executing clients against a web service.



WSDL Structure

The root element in a WSDL is named definitions as the WSDL provides definitions grouped into various sections like:

  • types section

  • message section

  • portType section

  • binding section

  • service section

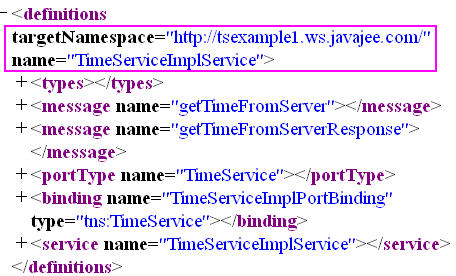

Example:



The types section

  • The types section provides data type definitions under some data type system such as XML schema.

  • The types section can hold, points to, or imports an XSD.

  • If the types section is empty, then the service uses only simple data types such as xsd:string and xsd:long.

  • The types section is optional.

  • Although the WSDL 2.0 specification allows for alternatives to XML schema, XML schema is the default and the dominant type system used in WSDL.

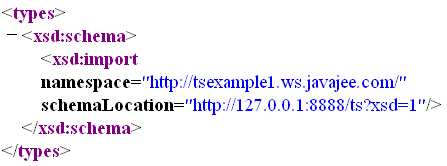

Example:



The message section

  • The message section defines the messages.

  • Message is an abstract, typed definition of the data being communicated.

  • All input parameters for a web service operation (method) are considered together as one input message.

  • At runtime each message is a SOAP document.

  • The order of the messages indicates the service pattern.

    • For example the message order in/out indicates the request/response pattern.



Example:



The portType section

  • The port Type section groups the operations that the web service delivers,

    • Operation is an abstract description of an action supported by the web service.

    • Each operation having one or more messages.

      • An input message means input to the web service and output message means messages from a web service.

      • All input parameters for a web service operation (method) are bundled together as one input message.

      • These messages are also defined separately in the messages section.

      • At runtime each message is a SOAP document.

    • The portType section presents the services as named operations.

      • Operations are named after methods annotated as @WebMethod.

  • The WSDL portType presents the service operations abstractly but provides no implementation details.

    • A web service’s portType is similar to a java interface that, it presents the service abstractly, with no implementation details.

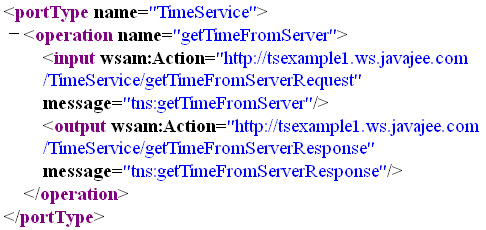

Example:



The binding section

  • A WSDL binding provides concrete details about the service.

  • Specify implementation details of a service defined abstractly in the potType section :

    • The transport protocol to be used in sending and receiving SOAP messages.

    • The style of the service – rpc or document

    • The data format to be used in the SOAP message – literal and encoded.



Example:



The service section

  • The service section list one or more port elements.

    • A port consists of a portType (interface) together with a corresponding binding (implementation).

  • Service section specifies one or more end points at which the service’s functionality is available.

    • A service endpoint url is contained in the location attribute of <soap:address>, which is inside the service section.

    • The service endpoint url informs clients about where the service can be accessed.

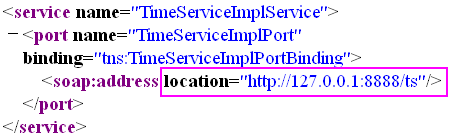

Example:



Fault Elements

  • Application exceptions can be mapped to faults in WSDL.

  • Fault elements may come in places such as:

    • Within a message element as a part:

      • <part name="fault" element="tns:MissingName" />

    • As a child of operation element within portType section.

      •  <fault message="tns:MissingName" name="MissingName" />

    • As a child of operation element within binding section

      • <fault name="MissingName">

      • <soap:fault name="MissingName" use="literal" />

      • </fault>



Example: Try it out yourself in coming lab.



Advantages of WSDL

  • WSDL is platform and language neutral.

    • A WSDL generated by a c# program can be used to generate a Java web service.

  • With WSDL and XSD, the definition of the message can travel with the message.



Limitations of WSDL

  • Though a wsdl provides details on how to invoke a service, it does not contain information about the use of the service.

    • Programmer should be aware about the use of a service.
